Denon PMA520AE 2-Channel 140W Integrated Stereo Amplifier - Black
£179.00
Denon PMA520AE 2-Channel 140W Integrated Stereo Amplifier - Black
Description
Specifications
The Denon PMA-520AE integrated amplifier features a High-Current Single-Push-Pull circuitry to achieve both strength and detail in music playback, which is Denon's focus for it's pure audio amplifiers
The relay switch used for CD and Phono input contains an inert gas to prevent the occurrence of noise that can negatively affect the signal. In addition, durable parts strictly selected for their contribution to sound quality, such as the large-capacity block capacitor for the power supply circuit, high-quality sound carbon resistors, and high-quality sound capacitors, are also used. Each individual part employed in configuring the circuits reflects this emphasis on high fidelity

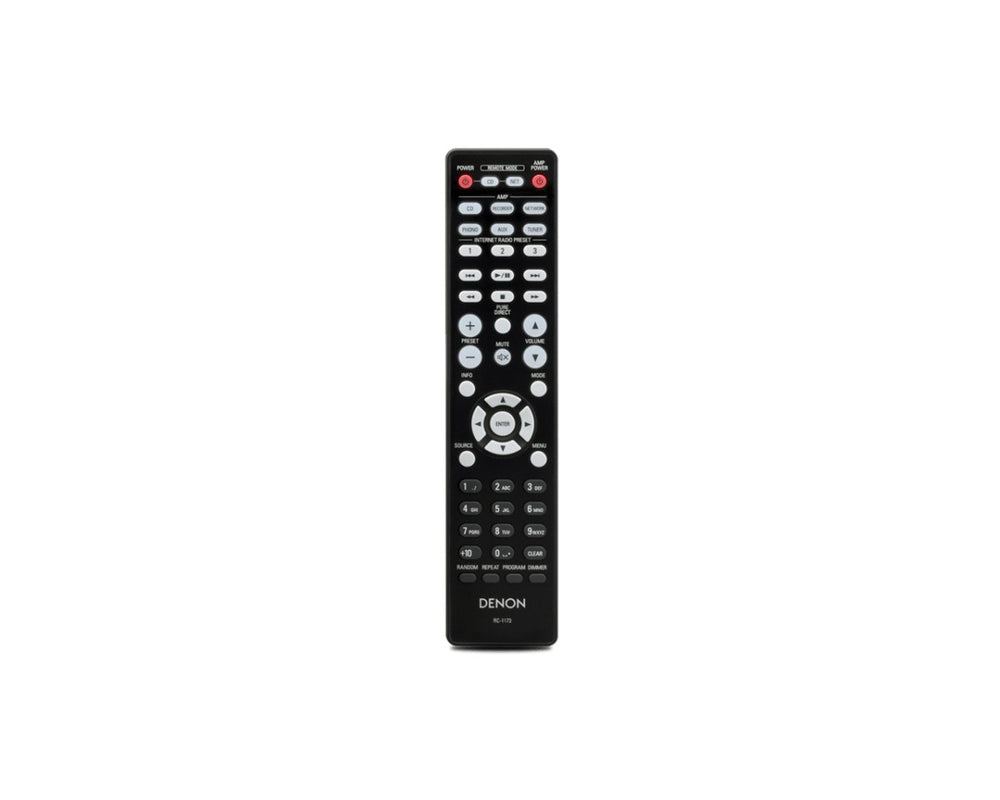

For improved convenience, the remote control unit that comes with the PMA-520AE includes the main functions that control Denon CD players.
Key features
Channels: 2
Advanced HC-TR single push pull circuit
Wide range amplifier
High current dynamic power supply
Power amp discrete construction
Micro processor auto off
Solid Heat Sinks
Source Direct
Balance / Bass / Treble / Loudness
Output power 8 Ohms (20Hz - 20kHz, T.H.D. 0.07%): 45W
Output power 4 ohms (1kHz, T.H.D. 0.7%): 70W
Total harmonic distortion: 0.02%
Input sensitivity (MM): 2.5mV / 47kohm
Signal to noise ratio (MM): 84dB
Input sensitivity (High level): 110mV / 30 kohms
Signal to Noise Ratio (High level): 105dB
Treble control: +/-8dB at 10kHz
Bass control: +/-8dB at 100Hz

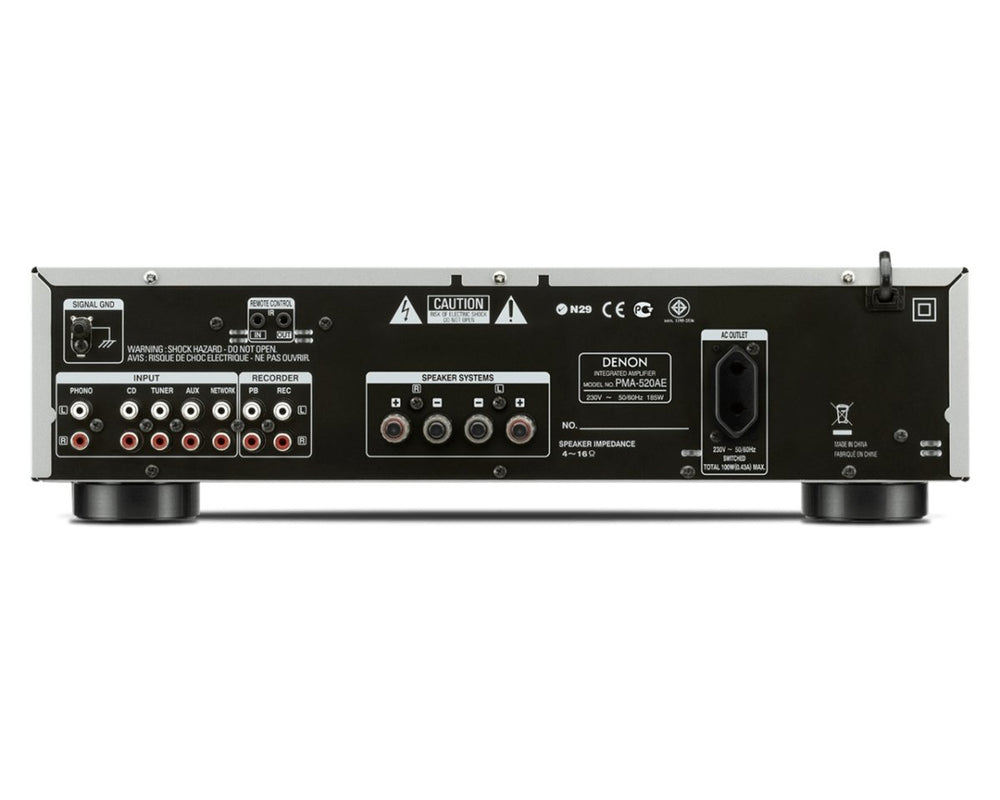

Inputs/outputs
Audio inputs: 6
Phono input: MM
Audio outputs: 1
Number of terminals: 1
Remote Control Bus in / out
Headphone out
General
Colour: black
Aluminium front panel
Power consumption: 185W
Standby power consumption: 0.3W
Auto power off
Detachable power cable
Remote control supplied
System remote function
Dimensions (W x D x H): 434 x 308 x 121mm
Weight: 6.8kg
2 years manufacturer's warranty
