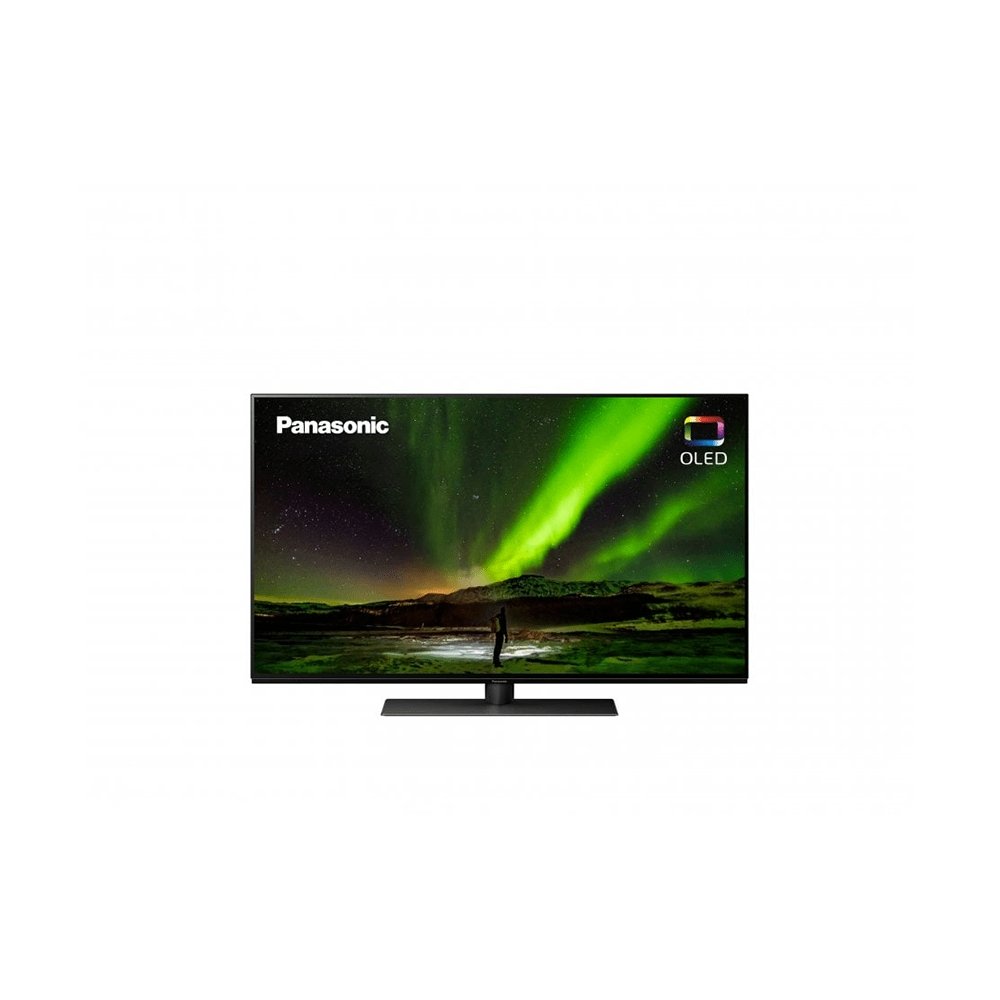

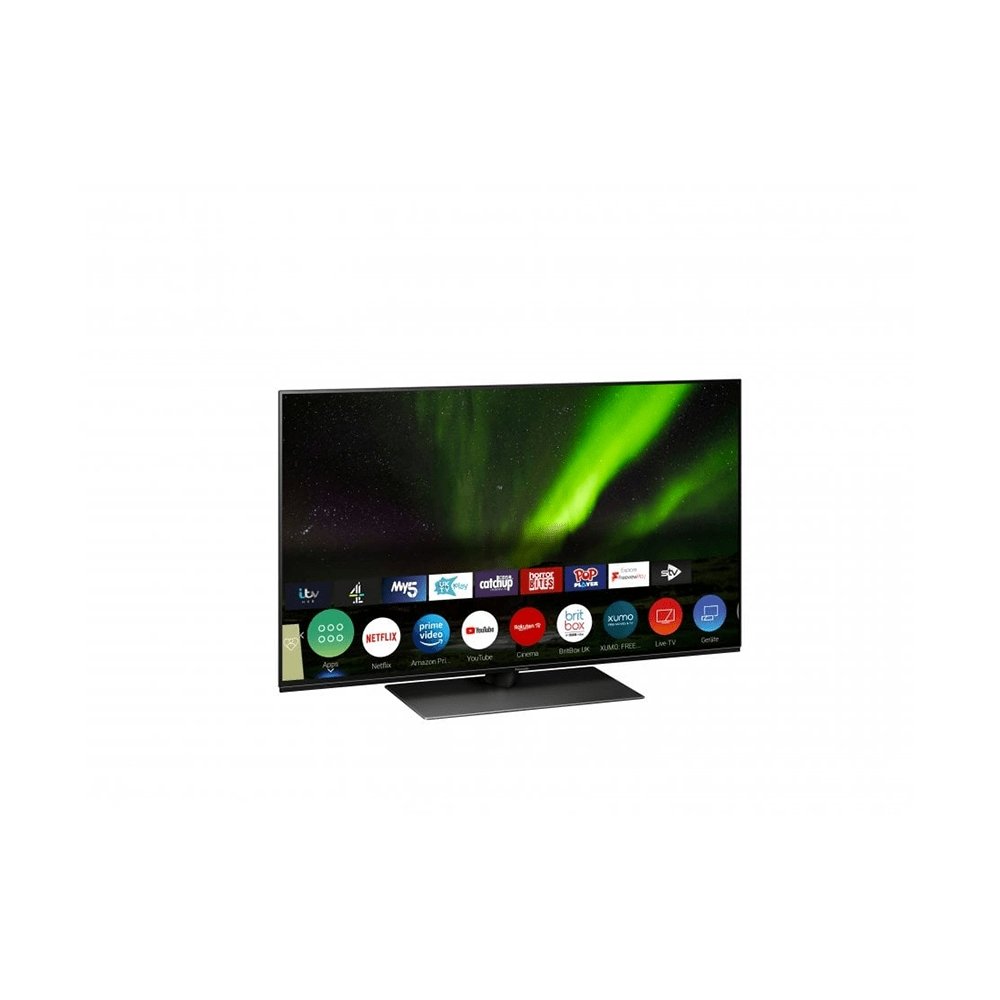

Panasonic TX48JZ1500B (2021) OLED HDR 4K Ultra HD Smart TV, 48 inch with Freeview Play & Dolby Atmos, Black

Panel Technology

4K OLED

Resolution (W x H)

4K Ultra HD/3,840 x 2,160

Motion Technology

Smooth Motion Drive Pro

Multi HDR Support*2

HDR10+ Adaptive/HDR10/HLG/DolbyVision IQ/HLG Photo*17

Dimming/Contrast

OLED/Ultimate Contrast

Colour Space

Wide Colour Spectrum

Dolby Vision IQ

Y

HDR10+ Adaptive

Y

Filmmaker Mode

Y (with intelligent sensing)

Processor/Engine

HCX Pro AI Processor

Auto AI for Picture

Y

Picture Mode

Auto AI/Dynamic/Normal/Cinema/True Cinema/FILMMAKER MODE/Custom/Professional Photo/Professional1 (isfccc)/Professional2 (isfccc)/Sport/Game/DolbyVision (Vivid/IQ/Dark)/Netflix Calibrated Mode

isf Mode

Y

Calman READY

Y (Internal Pattern Generator)

Dolby Atmos

Y

Surround

Cinema Surround Pro

Speaker Output

30 W (15 W x 2)

Auto AI for Sound

—

Sound Mode

Standard/Music/Speech/Stadium/User

Operating System

my Home Screen6.0

my Scenery

Y

Google Assistant*3 Built-in

Y

Works with Google Assistant

Y

Works with Alexa

Y

Panasonic TV Remote 3 App (swipe & share)

Y

Home Network*5　　

Y (Server / Client)

IP Home Control

Y

In-House TV Streaming （SATIP/DVB-IP)

—

Web Browser*6

Y

Easy Mirroring/Chromecast built-in

Easy Mirroring

Media Player

Y (2.0)*18

Support Format

AVI/HEVC/MKV/WMV/MP4/M4v/FLV/3GPP/VRO/VOB/TS/PS/AV1, MP3/AAC/WMA Pro/FLAC/Apple Lossless/WAV, JPEG/HLG Photo

Wireless LAN Built-in*7

Y　

Bluetooth

Bluetooth*8

Y
HID / HOGP (Keyboard/Mouse)
A2DP (Stereo Audio: In Single / Out Dual)

Bluetooth Audio Link*9

Y

HDMI Inputs*10

HDMI Inputs

4 (side: 1, bottom: 3)

HDCP

Y (HDCP2.3)

HDMI Support Feature

HDMI2.1 Support Feature
eARC (Enhanced Audio Return Channel) (Input 2 )
ALLM (Auto Low Latency Mode ) (All inputs)
VRR (Variable Refresh Rate) (input 1 & 2)
4K HFR (High Frame Rate ) (input 1 & 2)

AMD Freesync Premium*11

Y (Input 1 & 2)

HDMI Signal Power Link

Y

USB

3 (2 side, 1 bottom; USB 3.0 x 1, USB 2.0 x 2)

Ethernet

1

CI (Common Interface)

1 (CI Plus, Version 1.4, ECP)

Analogue Video Input

M3 x 1 (bottom)

Component Video Input shared with Composite

—

Digital Audio Output (Optical)

1 (bottom)

Digital Audio Output (Coax)

—

PC input (VGA) + PC Audio In

—

Headphone Output

1 (side; switchable to Subwoofer)

Alexa Built-in*4

Y

Digital Tuner

DVB-T/T2/DVB-S2

Analogue Tuner

Y

FreeView

Y w/ Quick look guide

Data Broadcasting

SD-MHEG

Teletext Reception

2000P

USB-HDD Recording*12

Y (w/ Rewind live TV)

Multi Window

2T PAP/PAT

HDAVI Control

Y

Voice Guidance

Y

EPG

Y

On Screen Display Menu Languages

English

Twin Tuner

Y

Design

—

Suppliers Trademark

Panasonic

Model ID

TX48JZ1500B

Energy Efficiency Class

G

Visible Screen Size (diagonal)

121 cm / 48 inches

On mode Average Power Consumption*13

88 kWh/1000h

Annual Energy Consumption*14

—

Standby Power Consumption

0.5 W

Off mode Power Consumption

0.3 W

Screen Resolution

3,840 x 2,160

Power Supply

AC 220 - 240 V, 50/60 Hz

Rated Power Consumption

279 W

Ambient Sensor (CATS)

Y

VESA Dimension (W x H)

300 x 300 mm

Carton Box Dimension (W x H x D)

1,408 x 755 x 220 mm

Carton Box Weight

28 kg

*1 Features and specifications are subject to change without prior notification. Internet connection is required with smart functions.
*2 All models: Supporting HDR does not increase the peak brightness capabilities of the TV panel.
Full HD & HD models: The ability to send a non 4K HDR signal via HDMI depends fully on the playback device. The majority of 4K Blu-ray discs require HDCP2.2 on TV to play back HDR, whereas the HDMI input on this TV support only HDCP1.4; accordingly not all HDR contents are guaranteed to be enjoyed on the TV.
*3 Google, Android TV and Chromecast built-in a trademarks of Google LLC
Google Assistant is not available in certain languages and countries
Requires internet connection. Subscriptions for services may be required.
*4 Amazon, Alexa is not available in certain languages and countries. Requires internet connection. Subscriptions for services may be required. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.
*5 File formats that are not supported by your Network Contents server (DLNA compatible server, etc.) cannot be played.
*6 The Web Browser cannot display some web pages correctly. And viewable contents by the Web Browser are subject to the following conditions;
- viewable contents may vary depend on models,
- viewable contents may differ from those for PC,
- viewable contents may be limited.
*7 In case the password of the registered device or user is known by a third party, there is a risk of unauthorized entries. Keep your password safe. Panasonic will make no warranty for the unauthorised entries.
To prevent a risk of interception, unauthorised entries and hacking, set up the proper security settings (encryption setting).
*8 HID (Human Interface Device Profile) compliant keyboards are available. A2DP (Advanced Audio Distribution Profile) compliant audio devices are available. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license.
*9 When a Bluetooth device is connected to the TV, it is possible that the Bluetooth audio output may not be synchronized (i.e. be delayed) with relation to the images on the screen. This is not a defect of the TV or the device. The delay time will differ depending on the device.
*10 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*11 ©2020 Advanced Micro Devices, Inc. All rights reserved. AMD and FreeSync and combinations thereof are trademarks of Advanced Micro Devices, Inc.
*12 This feature requires a USB hard drive or flash drive with a capacity of at least 160 GB.
*13 Based on (EU) 2019/2021 transitional measurement method.
*14 Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
*15 Not all the accessories are listed here.
*16 Dimension with recommended pedestal style.
*17 Supporting HSP standardized by CTA-2072 (HDR Still Photo Interface)
*18 To playback HDR, a HDR source is required (H.264 or H.265(ST2084 or HLG format)).
*19 27 Languages (English / German / Italian / Spanish / French / Danish /Finnish / Swedish / Dutch / Hungarian / Czech / Romanian / Bulgarian / Polish / Norwegian / Estonian / Latvian / Lithuanian / Portuguese / Turkish / Greek / Croatian / Slovak / Slovenian / Serbian / Russian / Macedonian)
