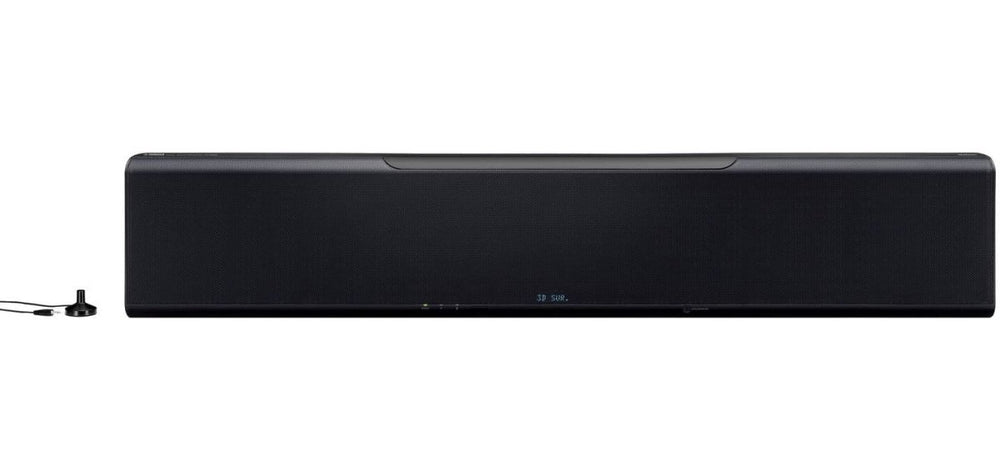

Inside the unit’s front grille are 44 precisely calculated and positioned speakers. In order to create 7-channel sound beams (Front left/right, Centre, Surround left/right, Height left/right), each of the speakers is controlled by and individual delay time and is driven with its own independent amplifier circuit. These beams are projected onto the walls and ceiling, to be reflected accurately to the listening position. This creates the same sound as real wall and ceiling speakers —not a virtual sound, but real 3D surround sound reproduction. In addition, the YSP-5600 uses the Surround channel sound beam for Surround Back, and the Surround channel is phantom merged to support the equivalent of up to 7.1.2-channel Dolby Atmos or DTS:X reproduction.
Height channel audio playback is realised by placing six array speakers at each end of the unit (a total of 12). For these array speakers, 28mm diameter units are used. In order to obtain the maximum sound beam effect, they are mounted on an angled baffle and sound beam vertical control is adapted. Sound field reproduction is just as if real speakers were mounted on the ceiling, so you get great sound without the bother of mounting speakers and stringing wires.
Height Channel Positions Can Be Precisely Adjusted to Match the Listening Position
For reproduction of the latest surround sound formats such as Dolby Atmos and DTS:X, the relationship between the listening position and the height channel locations is very important for faithful reproduction of the sound space. The YSP-5600 adjusts the angle of the sound beam directed at the ceiling allowing the height channel position to be matched to the listening position either manually or automatically. Even if the listening position relative to the display changes, you’ll get the effect of the height channel for natural 3D surround sound.
Directed Sound Beams Realise Distinct Height Channel Audio
The height channels can be located as close to the listening position as the centre speakers, and their positions and sound quality have a large effect on the live performance feeling created by multi-dimensional sound. By using directed beams reflected just once off the ceiling for reproducing the height channels, the YSP-5600 obtains a sharp sound position and distinct sound, ensuring realistic reproduction of environmental sounds such as thunder. You’ll experience the thrill of 3D surround sound that “rains from heaven.”
Dialogue Lift Ensures Proper Dialogue Orientation
With many soundbars positioned below the TV, especially when the TV is a widescreen model, dialogue and vocals seem to be coming from below the people who are talking or singing. To prevent this problem, the YSP-5600 has a Dialogue Lift function (adjustable in three steps) that causes the reflecting beams from its array speakers to raise the apparent height of the dialogue to appropriate levels on the screen. You enjoy sounds and images that are perfectly aligned, just as in a movie theatre.
Compatible with the New Formats Dolby Atmos and DTS:X
The YSP-5600 supports both Dolby Atmos and DTS:X, the latest surround sound formats that have attracted a lot of attention in the movie industry. Dolby Atmos is supported by the unit when shipped, while DTS:X is planned to be supported with a firmware update.
Supports Yamaha’s Own CINEMA DSP 3D Mode
Yamaha’s original CINEMA DSP 3D Mode adds an expansive height direction to the sound field, creating a rich surround space. The YSP-5600 supports this feature by using special array speakers to create vertical beams. You can enjoy the feeling of a live performance with standard sound formats, and combine this effect with Dolby Atmos or DTS:X to enjoy a more natural expansion of the 3D surround sound.
Choose One of Four Listening Modes to Match Your Scenario
The YSP-5600 is equipped with four listening modes: 3D Surround, which commands five horizontal beams and two vertical beams to recreate the equivalent of up to a 7.1.2-channel three-dimensional sound field; Surround, which uses five horizontal beams to perform normal 5.1-channel surround playback; Stereo, which uses a special vertical beam speaker as a tweeter to produce high sound quality 2-channel stereo from audio sources; and Target, which aims monaural speech clearly to a precise location in the room. In 3D Surround mode you can optionally select CINEMA DSP 3D Mode, while in Surround mode you can optionally select CINEMA DSP, providing a wider variety of sound field programmes.
Intellibeam Automates the Height Channel Settings
The YSP-5600 employs beam optimisation and sound optimisation features with the aid of the supplied IntelliBeam microphone, allowing you to avoid troublesome listening-based setup and achieve highly accurate sound adjustments that best match your listening environment. Together, these two features are called IntelliBeam. The positions of the sound beams directed at the ceiling can also be automatically set. The YSP-5600 can thus reproduce the live music ambience of a variety of rooms.
Two Interrelated Apps Let You Easily Control the YSP-5600 and Connected Equipment
With the Home Theater Controller (WLAN) app you can use a smartphone or tablet to control the basic functions or beam adjustments of the YSP unit, while with the MusicCast Controller app you can control audio streaming to devices connected via MusicCast. These two apps are interconnected, making it simple to operate the YSP-5600 and connected devices. You can download these apps for free from the App Store or Google Play.
MusicCast is a new revolution in network audio, use all your MusicCast products together or separately, it’s completely up to you. Control it, all from one app, designed to be intuitive, quick and simple to use. Use a soundbar, a wireless speaker, an AV Receiver, HiFi audio whichever suits you best, mix and match then expand your MusicCast system as time goes on. All new from Yamaha, the MusicCast system brings everything to everywhere for everyone.
MusicCast Expands Entertainment Possibilities
MusicCast employs a high performance wireless network to deliver music and audio enjoyment. It can stream digital music content from your smartphone, PC or NAS to other MusicCast devices in your home. It can also share the music from external devices such as a TV or BD p layer connected to the YSP-5600. Audio content from Bluetooth-connected smartphones or tablets can also be streamed to MusicCast devices in multiple rooms. All MusicCast models support Bluetooth. Not only can you enjoy streaming all content from your smartphone including content from video hosting services and music applications, but you can also distribute audio to other rooms. In addition, a wide range of sound source s are supported including MP3, WMA, AAC, Apple Lossless, WAV, FLAC and AIFF.
Bluetooth Output for Convenient Music Streaming
The YSP-5600 is equipped with the latest Bluetooth technology, making wireless operation more convenient than ever. You can stream music from the YSP-5600 to Bluetooth headphones for private listening or to Bluetooth speakers.
Streaming Services Offer a Huge Range of Listening Choices
Support for the music streaming services Spotify, Juke and Napster means you’ll enjoy a wide variety of music content. Furthermore, support for the vTuner radio station database enables sampling of Internet radio broadcasts from around the world.
Wireless Music Streaming via Bluetooth or AirPlay
Enjoy music from your smartphone or tablet wirelessly using a Bluetooth connection. You can also use the convenient AirPlay function for wireless music streaming from iPhone or iPads. In addition, a Bluetooth standby mode provides the convenience of having the YSP-5600 turn on and off automatically.
All MusicCast-compatible models feature Standby power mode that achieves low power consumption of under 3W . And taking the Eco design concept a step further, the YSP-5600 has even lower power consumption of less than 1.6W in Standby power mode. In addition, the Auto power Standby function automatically turns the power off after a set period of time with no signal elapses. This eco-design makes MusicCast thoroughly friendly to the environment.
Simple Exterior Design Doesn’t Interfere with Your Viewing
The front panel and the indicator section are covered by a mesh grille, achieving a simple, elegant look. The mesh on each end curves around to the upper panel, subtly asserting surround support. The indicator section lights only when needed, to avoid interfering with viewing. Even with its special vertical beam speakers the unit is only 1100mm, 100mm smaller than the previous YSP-5100 model, and the depth is only 93mm (without stand), making it an extremely slim presence in your room.
HDMI Terminal and 4K Ultra HD Full Support with 4K60p, HDCP2.2
The YSP-5600 supports the latest HDMI standards. Thanks to transmission of 4K video at 60 frames per second passthrough, you can fully enjoy the high definition video quality of 4K without degradation. It also adheres to the HDCP2.2 copyright protection standard for 4K video transmission.
Wireless Subwoofer Kit Included
The supplied SWK-W16 kit can be attached to a subwoofer unit to connect it wirelessly. You won’t need to use any connecting wires between the unit and the subwoofer, increasing your system layout options.
Supports Custom Installations

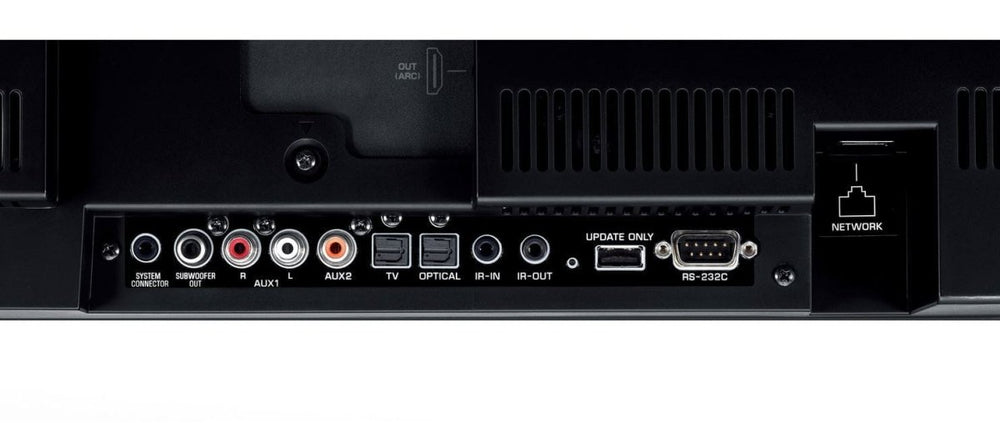

The unit provides an IR-OUT terminal as an IR path out function. This means it can detect almost any IR signal at the front to output electrical signals. It also has an IR-IN terminal for receiving remote control signals electrically from other units. In addition, it supports Control4 home automation signals, making it perfect for custom installations.
Additional Menus for Hotel Room Use
Additional menus are provided for settings such as preventing accidental operation by guests. For example, with the Turn-On Volume setting, when power is turned on the volume is automatically set to a reasonable volume to avoid the surprise of very loud sounds. The Max. Volume can block high volume settings, and the Input Lock can prevent accidental operation.
Other Notable Features
- Clear Voice makes dialogue and narrations easy to hear
- Music Enhancer improves the sound of compressed sources
- Adaptive DRC enables volume and dynamic range adjustment
- OSD supports overlay and multiple languages
(English, German, French, Spanish, Italian, Dutch, Russian, Swedish, Turkish, Japanese)
- Subwoofer output terminal for system expansion
