KEF Ci160RR THX Certified Ultra Architectural Speaker

KEF Ci160RR THX Certified Ultra Architectural Speaker

Model: CI160RR-THX
SKU: 100325361


Get your delivery date

Payment Options

Pay with instalments
In Stock
Change quantity
View full details

Delivery Date


Get Your Delivery Date

Pay with instalments

Buy now, pay interest free instalments. This is a credit product. Late Payment Fees may apply with some providers. 18+ terms apply.

Pay monthly in 3 interest-free instalments. Autopay with your card. 18+ terms apply.

klarna Today



klarna 30 Days

30 Days


klarna 60 Days

60 Days


Pay every 2 weeks in 4 interest-free instalments. Autopay with your card. 18+ terms apply.



2 Weeks


4 Weeks


6 Weeks


No hidden fees. This is a credit product. 18+. Visit PayPal for T&Cs.







Additional Services


Get a quote

There is an error

Added to your cart

KEF Ci160RR THX Certified Ultra Architectural Speaker
You have 0 item in your cart
Cart Total: £0.00
Continue Shopping
View Cart

Key Features

5 years parts & labour

Key Features
    • 25mm high frequency tweeter
    • Single Ceiling Speaker
    • Driver Size (mm): 165
    • Dimensions
    • Cutout Diameter (mm): 196
    • Mounting Depth (mm): 110
    • Overall Depth (mm): 115
    • Overall Diameter (mm): 234.6


KEF Ci160RR THX in-ceiling speaker is designed for home cinema systems and the flagship in-ceiling speaker in the Ci-R series. It’s easy to install, designed to be discreet and uses KEF’s signature Uni-Q technology.

KEF Uni-Q Design

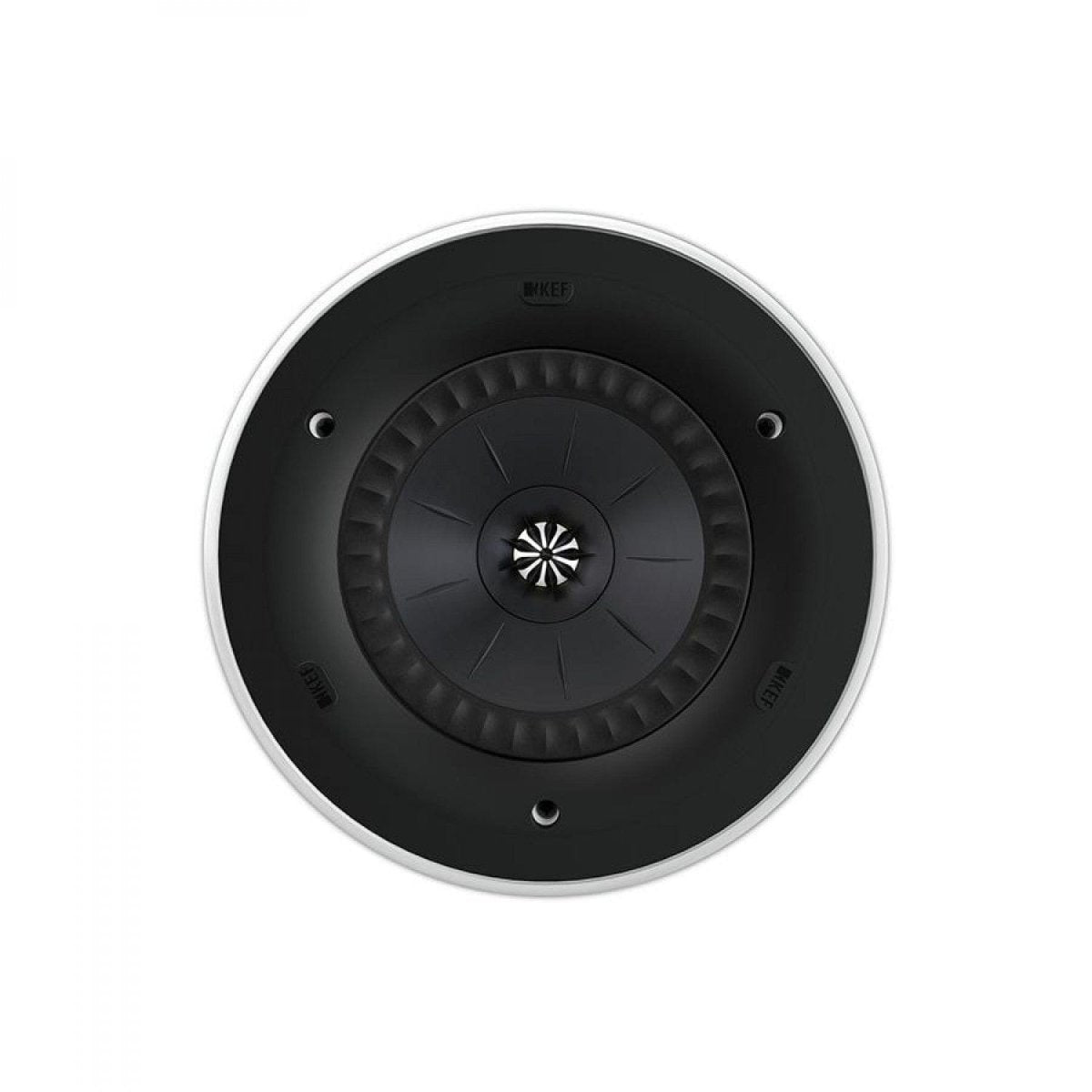

The Ci160-RR THX in-ceiling speaker has a 6.5” diameter designed with KEF’s Uni-Q technology. This involves positioning the treble unit within the throat of the woofer, ultimately creating a single point source for sound across the frequency spectrum. The end result of this is a broader, more cohesive sound.

Tangerine Wave-Guide

The Ci160-RR has improved treble dispersion by using KEF’s "tangerine" wave-guide technology. This is basically a radial channel phase plug that creates a slight compression loading effect resulting in slightly higher output gain without the need for additional power. This results in more efficient high-end performance with greater dispersion and better treble integration with the mid-range.

Quick and easy to install

The Ci160RR THX is easily installable, with special skills needed, a main characteristic found in all of the KEF Ci-R series. It’s 160mm diameter cut out is the same as any 160mm KEF speaker for ease of installation and component selection. The greyish white speaker covering allows for a discreet look.

KEF’s Matched Sound

All the KEF Ci-Series speakers have been sonically matched so that the tonal characteristics of the speakers don’t change if you have multiple KEF speakers in your system. This provides tonal balance, accuracy and neutrality of the sound throughout your room.

Information From Manufacturer


Nominal Impedance 4 Ohms
Sensitivity 90dB (2.83V/ 1m)
Frequency Response Open-Backed (±6DB) 40Hz - 28kHz (±6dB)
Frequency Range (-10DB) 32Hz-30kHz
Nominal Coverage (DEGREES) 115
Crossover Frequencies 350Hz, 2.7kHz
Recommended Amplifier Power 10-190W
Recommended High Pass Filter 38Hz
Product External Dimension (H X W X D) Diameter Ø: 234.6mm (9.24in.), Depth :115mm (4.53in)
Cut Out Dimesnsions (H X W) Diameter Ø: 196mm (7.71in.)
Mounting Thicknesses Ceiling Thickness (Maximum): 37mm (1.460in.)
Mounting Thickness (Max) 37mm
Mounting Thickness (Min) 5mm
Max SPL (DB) 105
Crossover Frequency 2.1kHz
Driver Unit LF: 165mm (6.5in.) Uni-Q
Certification THX Ultra
Net Weight 2.94kg (6.48Ibs.)
