Key Features
2 Years Warranty
- Dimensions (HxWxD)- 5cm x 70.2cm x 40.2cm
Customised kitchen design - fully integrated in 702 mm width
Unique user convenience –Con@ctivity
Powerful – 600 m3/h in Booster level
Efficient filtration-10-ply stainless-steel grease filter
Safe and easy to clean -Miele CleanCover
Description

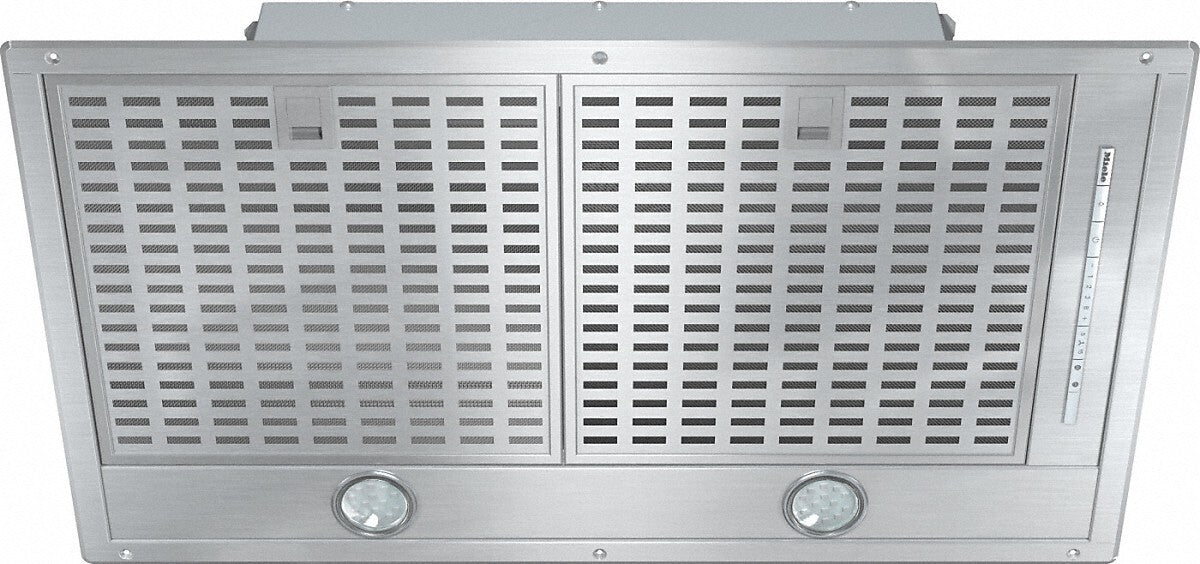

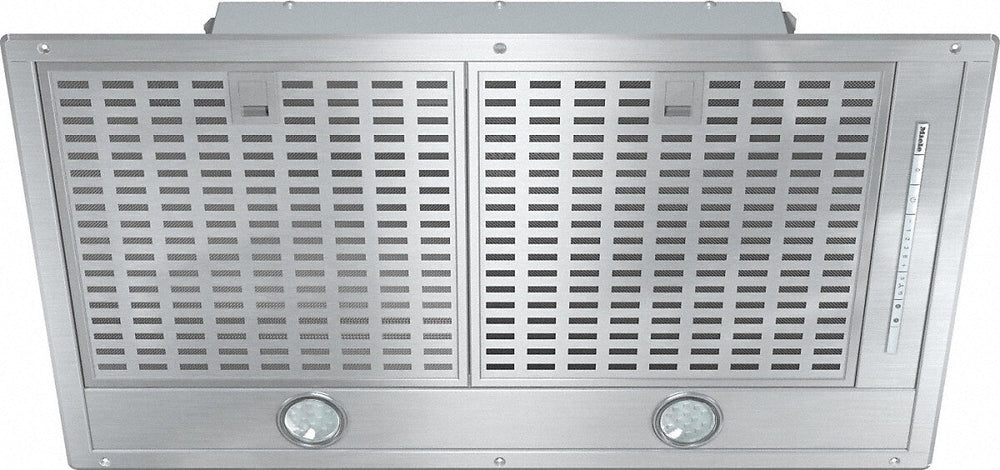

This cooker hood has a Range of intelligent innovations to help keep your kitchen air clean and fresh. The powerful extractor fan features a temporary booster mode for quickly clearing smoke or strong odours, which will then automatically return to a normal speed. You can also set it to switch off 5 or 15 minutes after you finish cooking to save energy. Efficient LED lights provide task lighting while you cook.
Information From Manufacturer
Specifications
Technical Data | |
Canopy width in in. (mm) | 702 |
Canopy height in in. (mm) | 50 |
Depth of hood canopy in in. (mm) | 402 |
Minimum height above electric hobs in mm | 450 |
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm | 650 |
Net weight in kg | 11.60 |
Length of supply lead in m | 1.50 |
Standard plug fitted | ✓ |
Total rated load in kW | 0.23 |
Voltage in V | 230 |
Fuse rating in A | 10 |
Frequency in Hz | 50 |
Number of phases | 1 |
Efficiency and sustainability | |
Energy efficiency class (A+++ to D) | A |
Annual energy consumption in kWh/year | 51.70 |
Fluid dynamic efficiency class | A |
Lighting efficiency class | A |
Grease filtering efficiency class | B |
Exhaust Air | |
Air throughput in Level 1 (m³/h) according to EN 61591 | 250 |
Air throughput in Level 2 (m³/h) according to EN 61591 | 300 |
Air throughput in Level 3 (m³/h) according to EN 61591 | 360 |
Air throughput in booster level 1 (m³/h) | 600 |
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 | 47 |
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 | 51 |
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 | 56 |
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 | 67 |
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 | 32 |
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 | 37 |
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 | 41 |
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 | 52 |
Recirculation | |
Air throughput in Level 1 (m³/h) according to EN 61591 | 200 |
Air throughput in Level 2 (m³/h) according to EN 61591 | 250 |
Air throughput in Level 3 (m³/h) according to EN 61591 | 320 |
Air throughput in Booster level 1 (m³/h) according to EN 61591 | 530 |
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 | 55 |
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 | 59 |
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 | 63 |
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 | 72 |
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 | 39 |
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 | 44 |
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 | 48 |
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 | 57 |
Safety | |
Safety shut-off | ✓ |
Installation notes | |
Extraction ducting connection at top | ✓ |
Extraction connection at top and rear | ✓ |
Diameter of extraction ducting connection in mm | 150 |
Combination with WiFi-enabled Miele hob | recommended |
Accessories included | |
Non-return flap | ✓ |
EAN | |
EAN | 4002515978276 |
