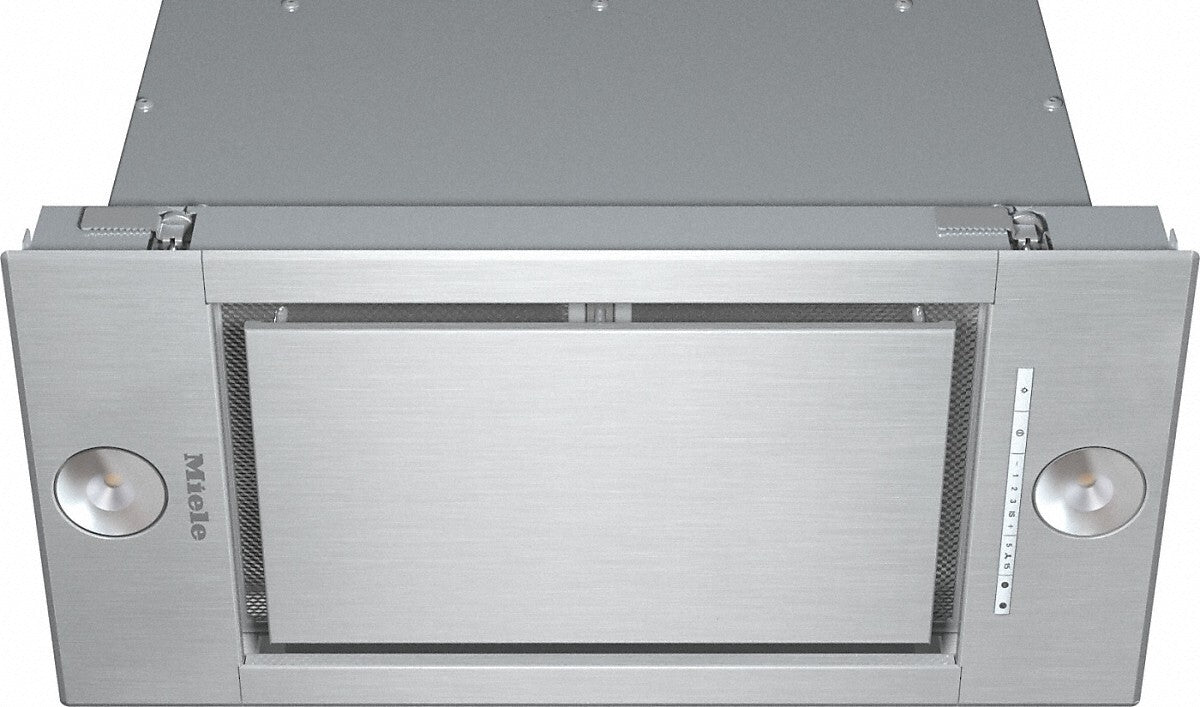

Customised kitchen design - fully integrated in 580 mm width
Unique user convenience – Con@ctivity
Powerful – 585 m3/h in Booster level
Energy-efficient and quiet - powerfulECO motor
Efficient filtration - 10-ply stainless-steel grease filter
This cooker hood is powerful, quiet and energy-efficient (A+ rated). A booster mode will quickly clear heavy smoke or odours before automatically reverting to a lower level, saving energy. It can also be set to run for 5 or 15 minutes after you’ve finished cooking and then switch off. The stainless-steel grease filters are carefully concealed for improved aesthetics and are dishwasher-proof. LED lights provide bright light while you cook.
| Technical Data | |
| Canopy width in in. (mm) | 580 |
| Canopy height in in. (mm) | 63 |
| Depth of hood canopy in in. (mm) | 293 |
| Minimum height above electric hobs in mm | 450 |
| Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm | 650 |
| Net weight in kg | 12 |
| Length of supply lead in m | 1.50 |
| Standard plug fitted | ✓ |
| Total rated load in kW | 0.09 |
| Voltage in V | 230 |
| Fuse rating in A | 10 |
| Frequency in Hz | 50 |
| Number of phases | 1 |
| Efficiency and sustainability | |
| Energy efficiency class (A+++ to D) | A+ |
| Annual energy consumption in kWh/year | 28.40 |
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | A |
| Grease filtering efficiency class | A |
| PowerManagement system | ✓ |
| ECO motor | ✓ |
| Exhaust Air | |
| Air throughput in Level 1 (m³/h) according to EN 61591 | 175 |
| Air throughput in Level 2 (m³/h) according to EN 61591 | 265 |
| Air throughput in Level 3 (m³/h) according to EN 61591 | 365 |
| Air throughput in booster level 1 (m³/h) | 585 |
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 | 35 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 | 44 |
| Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 | 51 |
| Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 | 64 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 | 21 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 | 29 |
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 | 37 |
| Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 | 50 |
| Recirculation | |
| Air throughput in Level 1 (m³/h) according to EN 61591 | 115 |
| Air throughput in Level 2 (m³/h) according to EN 61591 | 200 |
| Air throughput in Level 3 (m³/h) according to EN 61591 | 330 |
| Air throughput in Booster level 1 (m³/h) according to EN 61591 | 490 |
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 | 46 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 | 56 |
| Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 | 64 |
| Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 | 74 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 | 32 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 | 42 |
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 | 49 |
| Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 | 60 |
| Safety | |
| Safety shut-off | ✓ |
| Installation notes | |
| Extraction ducting connection at top | ✓ |
| Extraction connection at top and rear | ✓ |
| Diameter of extraction ducting connection in mm | 150 |
| Combination with WiFi-enabled Miele hob | recommended |
| Accessories included | |
| Non-return flap | ✓ |
| EAN | |
| EAN | 4002516001522 |
